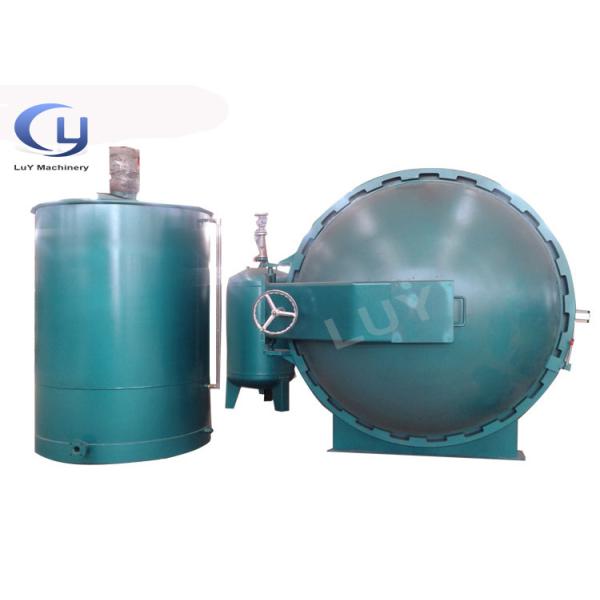

With Double Safety Interlocking Wood Treatment Plant Can Be Customized
Ⅰ Product description
This With Double Safety Interlocking Wood Treatment Plant have been sold to the Myanmar, Russia, Thailand, South Korea, Philippines, Tanzania, Kenya, Uganda, Sweden and so on.Has a wide use range, safety and reliability, and can meet the deep processing requirements of users for various types of wood.
This machine can be applied to various water-soluble chemicals such as CCA, ACQ, boric acid, Tanalith E and etc. Wood treatment plant mainly used for deep processing of wood, vacuum pressure treatment method, so the wood to achieve anti-corrosion, pest control, and other purposes.
Ⅱ Main Model
| Model | Effective Diameter(mm) | Effective Length(mm) | Total capacity(cubic meter) | Effective treat capacity(cubic meter) |
| DN1500*4000 | 1500 | 4000 | 7.0 | 4.7 |
| DN1500*6000 | 1500 | 6000 | 10.6 | 7.0 |
| DN1800*8000 | 1800 | 8000 | 20.3 | 13.5 |
| DN1800*10500 | 1800 | 10500 | 26.7 | 17.8 |
| DN1200*4000 | 1200 | 4000 | 4.5 | 3.0 |
| DN1200*6000 | 1200 | 6000 | 6.7 | 4.5 |
| DN2000*14000 | 2000 | 14000 | 43.9 | 29.3 |
| DN2200*16000 | 2200 | 16000 | 60.8 | 40.5 |
| DN2500*12000 | 2500 | 12000 | 58.8 | 39.2 |
| DN2500*14000 | 2500 | 14000 | 68.6 | 45.7 |
Note: The diameter and length can be customized according to users' needs. If the above model is not available, please tell us the diameter and length you need. We can customize it for you.
Ⅲ Technical parameters
1. Material:Q345R carbon steel
2. Voltage:380v 3 phase 50hz(can be customized according to users’ needs)
3. Design pressure:1.58MPA
4. Working medium: various water-soluble like CCA ACQ
5. Working pressure:1.0-1.4MPA
6. Vacuum:-0.098MPA
Ⅳ Technology Process
Extract Vacuum---holding vacuum and adding medicament---open the pressurizing pump after reaching the liquid level ---maintain the required pressure to infuse the medicament into the wood cells for a period of time—pressure unloading—discharge Reagents --- Vacuum again --- Restoring atmospheric pressure --- Open the tank door and remove the wood --- Complete
Ⅴ Our advantages
1..-- The material of this machine is Q345R steel, is the special steel plate for pressure vessel, we purchase from famous Jinan steel factory.
2. -- Manual quick open door way, advanced open door method, only one young girl can open the door easily. Double safety device, automatic safety interlocking device and Manual safety interlocking device, it solved the safety problem of wrong operation.
3. -- Our company has own special flaw detection to ensure the quality of products.
4.-- Regardless of whether it is a vacuum pump, air compressor or pipeline, our configuration is relatively high, and the equipment is highly working efficient, which also saves costs for users.
